*Official* Rifle Thread

Post by The Cylon Empire » Wed Mar 23, 2011 10:44 pm

The 1978 Cylon Centurion has a no-nonsense rifle to *ZAP* Colonials with.

Screen accurate details:
  • Constructed of vac formed plastic
  • Side panels are custom built details - made from bits of off-the-shelf model kits. (The same way the Galatica filming model was detailed.)
  • Has electrical tap around the muzzle (yes, electrical tape)
  • Hero rifle has lights, but no sound. Sound was added in post production to the show's soundtrack (and of course it didn't really shoot lasers....OR DID IT!? :twisted:)
  • Stunt rifles have no lights
Low cost alternatives:
  • There are a few excellent options for prop rifle from various members in good standing of the Cylon Empire. They can be contacted via PM in the ByYourCommand.net forum
Notes:
  • Hero prop - High detail for close ups and have working options (lights/sounds/movements/etc.).
  • Stunt prop - Low detail for background use. Physically resemble hero props, but typically a solid or hollow low quality copy. No working options (lights/sounds/movements/etc.).
(photos to follow)



:byyourcommand:
This is an *official* thread of the Cylon Empire **********************************
This first post will be edited when needed to add or correct information.
This thread is open to discussion below, BUT NOTE, the thread is subject
to heavy pruning to keep miscellaneous chatter down and the topic focused.
******************************************************************************************


Centurion, you were created to serve our empire.
You exist that the Cylon Empire my grow and organize the universe.
Eternal perfection and order is the goal of the Cylon Empire.

User avatar
groupleaderzeta
Squadron Leader
Posts: 658
Joined: Thu Nov 18, 2010 8:08 am
Location: Paraguay
Contact:

Re: *Official* Rifle Thread

Post by groupleaderzeta » Thu Jul 14, 2011 9:19 pm

Hello fellow cylons,

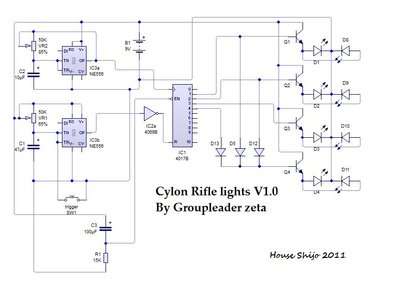

Due to me having little time to work on many items. I decided to post the circuit I designed for the rifle light sequencer for those that want to make one. Adjust VR2 for speed, VR1 is for the reset.

questions, I will do my best to answer.
Attachments
cylon rifle lights_groupleaderzeta.jpg

User avatar
Skullbeast
Outpost Commander
Posts: 1533
Joined: Mon Apr 04, 2011 11:24 pm

*Official* Rifle Thread

Post by Skullbeast » Thu Jul 14, 2011 10:16 pm

That's really cool, unfortunately for me it looks like the way to grandmas house. Is that in Greek? Lol thanks! Maybe it's time for me to learn how to read schematics.

User avatar
GoldCylon
Founder
Posts: 6948
Joined: Fri Dec 02, 2005 3:02 pm
Location: Sacramento
Contact:

Re: *Official* Rifle Thread

Post by GoldCylon » Fri Jul 15, 2011 12:47 am

I guess my grandma was Greek, and I never knew it...LoL....I read it like a road map. Love it. Thanks. Can it handle the super bright white LED's?

User avatar
groupleaderzeta
Squadron Leader
Posts: 658
Joined: Thu Nov 18, 2010 8:08 am
Location: Paraguay
Contact:

Re: *Official* Rifle Thread

Post by groupleaderzeta » Fri Jul 15, 2011 6:48 am

possible, I have never tried them. The maximum current draw I have used was 40 mA on each output. The chips are inexpensive to test if damaged you out about $.40. For me I would use 2N3904 NPN transistors between chip output and LEDs to be on the safe side, they can handle 500mA. Don't forget at lease a 1 Ohm bios resistor between base of transistor and chip output!
